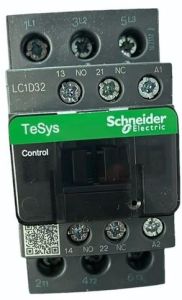

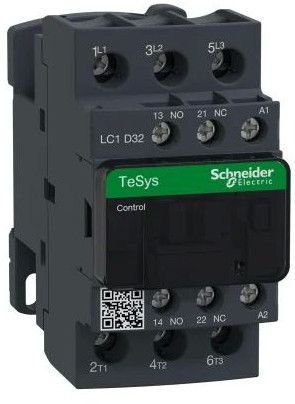

Schneider Electrical Contactor

Schneider Electric LC1D32 is a part of the TeSys D range of contactors, designed for use in industrial control and automation systems. Here's an overview of this model:

Specifications:

1. Type: LC1D32
2. Poles: 3 (Three-phase power contactor)
3. Rated Current:
   • Up to 32 A for AC-3 applications (motor starting and switching).
4. Coil Voltage:
   • Available in various voltages (AC or DC), such as 24V AC/DC, 230V AC, 415V AC, etc. Ensure to specify the correct coil voltage when ordering.
5. Applications:
   • Primarily for motor control (AC-3 duty).
   • Rated for use up to 75 kW at 400V.
   • Also suitable for resistive loads (AC-1 duty).
6. Mounting Options: DIN rail or panel mounting.
7. Auxiliary Contacts:
   • The contactor may come with built-in auxiliary contacts (typically 1 NO + 1 NC).
   • Additional auxiliary contact blocks can be added.

Features:

• Compact design suitable for various electrical panels.
• Highly reliable with durable electrical and mechanical life.
• Conforms to IEC standards for safety and performance.
• Easy integration into automation systems.

Typical Applications:

• Industrial motor control.
• HVAC systems.
• Pumps and compressors.
• Conveyor systems.
