L&T AC Drives

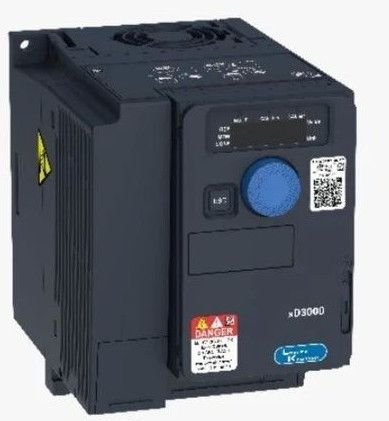

Leading Wholesaler and Trader of L&Amp;T xD1000 AC Drive, L&T xD2000 AC Drive, L&T xD3000 AC Drive and L&T xD4000 AC Drive from Pune.
| Business Type | Supplier, Trader |
| Transient Overtorque | 170%~200% |
| Digital Inputs | 4 |
| Digital Outputs | 2 |
| Analog Inputs | 1 |
| Brand Name | L&T |
| Rated Temperature | 55 C (HD), 50 C (ND) |
| Analog Outputs | 1 |
| PID Control | Inbuilt With 4 Preset References |
We offer the L&T xD1000 AC Drive, designed for optimal performance in various industrial applications. With a rated temperature of 55°C (HD) and transient overtorque of 170%~200%, this drive ensures reliable operation under demanding conditions. Featuring 4 digital inputs, 2 digital outputs, 1 analog input, and 1 analog output, it provides versatile connectivity options. The inbuilt PID control with 4 preset references allows for precise control and monitoring. Trust L&T, a reputable brand in the industry, for high-quality products. Ideal for suppliers and traders looking for efficient and advanced drive solutions.
| Business Type | Supplier, Trader |
| Brand Name | L&T |
| Suitable Applications | Non-regenerative |
| Operating Temperature | -15 To 45 Degrees Celsius |
| EMC Filter | Inbuilt With Category C3 EMC Levels |
| DC Reactor | Inbuilt, 4 KW To 160 KW |
| Keypad | Inbuilt Detachable LCD Keypad |
| Inputs | 6 Digital Inputs, 3 Relay Outputs, 3 Analog Inputs |
| Outputs | 2 Analog Outputs |
| Control Circuit Backup | External 24 VDC Connection |
| Specific Functions | Pump And Compressor Specific Functions |
| DI Functions | 2 Functions To One Digital Input |
| Business Type | Supplier |
| Brand Name | L&T |
| Suitable Applications | Machine Applications |
| Ambient Temperature Range | -10 To 50°C |
| EMC Filter | Inbuilt, EMC Category C2 |
| Braking Transistor | Inbuilt |
| Inputs | 6,3 |
| Outputs | 3,1 |
| Special Inputs | 1 |
| Control Circuit Power Backup | External 24 VDC |
| Analog Inputs Features | Delinearization,Reference Addition,Reference Subtraction,Reference Multiplication |
| Hoisting Features | External Brake Control,Load Measurement,Highspeed Hoisting,Rope Slack Detection |
| Torque Limiting | Motor / Generator Torque Limit |
| Contactor Control | Line Contactor Control,Output Contactor Control |
| Positioning | Limit Switches Or Sensors |
| Textile Machine Control | Traverse Control |
| Trip History | 8 Records |
| Business Type | Supplier, Trader |
| Brand Name | L&T |
| Display Type | Graphical LCD |
| Keypad | Detachable 8 Line With Battery For RTC & Help Menu |
| Ambient Temperature Range | -10 To 50°C |
| DC Reactor | Inbuilt Over Entire Range |
| EMC Filter | Inbuilt For EMC Levels C2/C3 |
| Communication Ports | Dual Port Ethernet IP/Modbus TCP, Modbus RS485 |
| Braking Transistor | Inbuilt Up To 160kW HD |
| Digital Inputs | 8 |
| Digital Outputs | 4 |
| Analog Inputs | 3 |
| Analog Outputs | 2 |
| STO Inputs | 2 |
| Special Functions | Crane Specific Functions,Pump Specific Functions,Line & Output Contactor Control |
| Operating Modes | Load Sharing,Speed-Torque Master Slave,Multi-motor Configuration Mode |
| Safety Features | Automatic Restart,Catch On The Fly (Flying Start),Fault Inhibition/Error Detect Disabling (Fire Mode) |
| Trip Histories | 15 With Date And Time Stamp |
