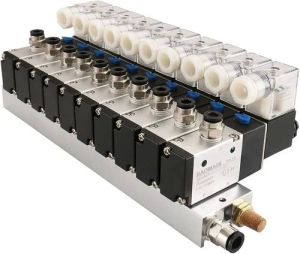

Pneumatic Solenoid Valve

Pneumatic solenoid valve is an electrically controlled valve used to direct the flow of compressed air in a pneumatic system. It operates by using an electromagnet (the solenoid) to control the movement of the valve, which opens or closes passages for the air to move through, based on electrical signals. These valves play a key role in industrial automation and machinery, enabling precise control over pneumatic actuators, cylinders, or tools by regulating the airflow.

Here's an overview of its components and how it functions:

1. Solenoid: An electromagnetic coil that generates a magnetic field when an electric current passes through it.
2. Plunger: A movable metal component within the solenoid that is pulled when the solenoid is energized, activating or deactivating the valve.
3. Valve Body: Contains the pathways for airflow. The configuration of the body determines how air flows through the system.
4. Ports: Inlet, outlet, and exhaust ports in the valve body allow air to enter, exit, or vent as necessary.
5. Spring: Returns the plunger to its original position when the solenoid is de-energized (in some valves, like normally closed types).

Types of Pneumatic Solenoid Valves

• 2-Way Valve: Controls airflow in one direction and has an inlet and outlet port.
• 3-Way Valve: Often used for single-acting cylinders; it has three ports: inlet, outlet, and exhaust.
• 4-Way Valve: Commonly used for double-acting cylinders, with four or more ports to control the actuation in both directions.

Applications

Pneumatic solenoid valves are used in industries such as:

• Manufacturing and Assembly: To control pneumatic tools and actuators.
• Automotive: In systems like automatic transmissions and suspension control.
• Pharmaceutical: For precise control in pneumatic automation.
