| Business Type | Supplier, Trader |
| Brand Name | L&T |
| Mounting Type | Flush Mounting 96 X 96 Mm |
| Relay Output | 4 |
| Click to view more | |
Product Details
Accuracy Class
Class 1.0, 0.5S
Input Voltage Measurement Range
50-520 VAC (P-P)
Aux Supply Voltage
80-300 VAC/DC
CT Secondary Site
1A / 5A
Memory Capacity
8MB
Time Of Day (TOD) Slots
6
Harmonics
Up To 31st
CT/PT Site Programmable
Yes
Datalogging
Yes
Demand Types
Running,Max,Prediction
Window Type
Block/sliding
Display Information
Single Page Window
Size
96 X 96 Mm

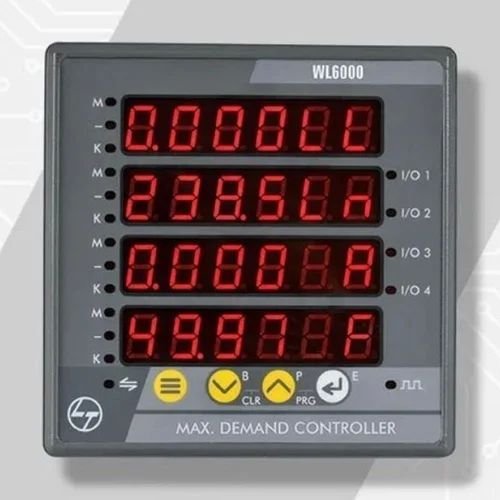

We offer the L&T Maximum Demand Controller, featuring an Accuracy Class of 1.0 for precise measurements. With an Input Voltage Measurement Range of 50-520 VAC (P-P) and Aux Supply Voltage of 80-300 VAC/DC, this controller ensures reliable performance. The CT Secondary Site options of 1A/5A cater to various needs. Designed for Flush Mounting at 96 X 96 mm, it boasts a Memory Capacity of 8MB and 4 Relay Outputs. Additionally, it includes 6 Time Of Day (TOD) Slots and can handle Harmonics up to the 31st order. Ideal for suppliers and traders seeking top-notch control solutions.
