| Business Type | Supplier, Trader |
| Brand Name | L&T |
| Thermal Memory | Switchable |
| Current Rating | 125A To 800A |
| Click to view more | |
Product Details
Number of Poles
3P/4P
Conforms To Standard
IS/IEC 60947-2
Breaking Capacities
25kA, 36kA & 50kA @800V
Rated Insulation Voltage
1250V AC Rms
Adjustable Overload Setting
0.25 To 1.0 X In
Adjustable Short-Circuit Setting
1.5 To 12 X Ir
Adjustable Instantaneous Setting
6 In & 12 In
Ground Fault Protection Range
20% To 70% Of In
Adjustable Neutral Overload Protection
50% To 200% Of Ir

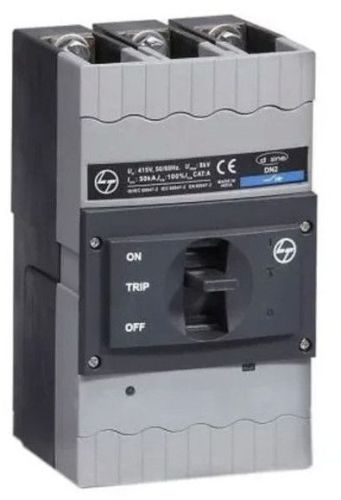

We offer the L&T iTRP3 Microprocessor Release MCCB, featuring a current rating range of 125A to 800A. This MCCB by L&T is designed with 3P/4P poles, conforms to IS/IEC 60947-2 standards, and has breaking capacities of 25kA. With a rated insulation voltage of 1250V AC Rms, it allows adjustable overload settings from 0.25 to 1.0 X In, adjustable short-circuit settings from 1.5 to 12 X Ir, and adjustable instantaneous settings at 6 In & 12 In. The ground fault protection range is from 20% to 70% of In. Ideal for suppliers and traders seeking reliable electrical components.

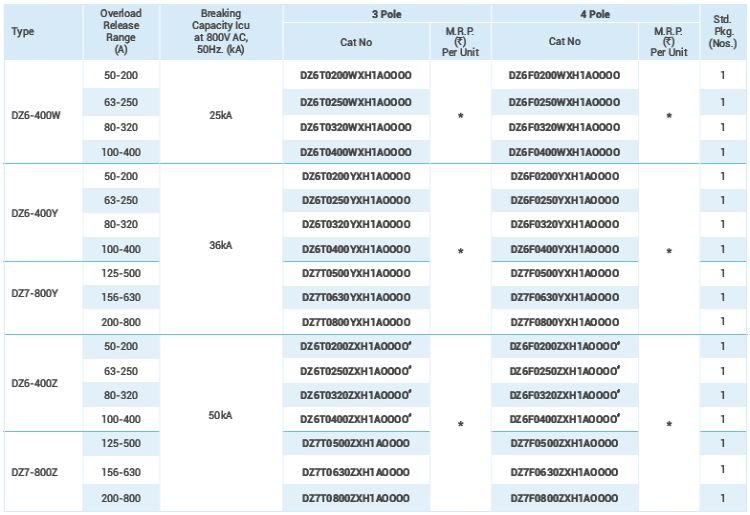

Specification
Looking for "L&Amp;T iTRP3 Microprocessor Release MCCB" ?
